Editing path segments works similarly in Adobe applications. You can edit a path segment at any time, but editing existing segments is slightly different from drawing them. Keep the following tips in mind when editing segments:

  • If an anchor point connects two segments, moving that anchor point always changes both segments.

  • When drawing with the Pen tool, press Ctrl (Windows) or Command (Mac OS) to temporarily activate the last used selection tool (Illustrator) or the Direct Selection tool (InDesign and Photoshop) so that you can adjust segments you’ve already drawn.

  • When you initially draw a smooth point with the Pen tool, dragging the direction point changes the length of the direction line on both sides of the point. However, when you edit an existing smooth point with the Direct Selection tool, you change the length of the direction line only on the side you’re dragging.

Move straight segments

  1. With the Direct Selection tool  , select the segment you want to adjust.
  2. Drag the segment to its new position.

Adjust the length or angle of straight segments

  1. With the Direct Selection tool  , select an anchor point on the segment you want to adjust.
  2. Drag the anchor point to the desired position. Shift-drag to constrain the adjustment to multiples of 45°.
    Note:

    In Illustrator or InDesign, if you’re simply trying to make a rectangle wider or narrower, it’s easier to select it with the Selection tool and resize it using one of the handles on the sides of its bounding box.

    Using the Direct Selection tool on a straight segment moves the segment. However, when used on a curved segment, reshaping is unconstrained. Use the Reshape Segment cursor to reshape with touch input on touch-based devices and touch workspace. You can use it with the Direct Selection tool.

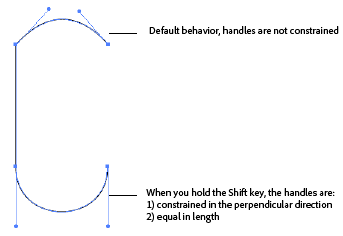

    Constraining Handles in the Perpendicular Direction

    Constraining Handles in the Perpendicular Direction

    Hold the Shift key while reshaping with the Direct Selection tool to constrain the handles in the perpendicular direction. This enables you to reshape curves into semi-circular shapes. This also ensures that the handles are of equal length.

Adjust the position or shape of curved segments

  1. With the Direct Selection tool, select a curved segment, or an anchor point on either end of the curved segment. Direction lines appear, if any are present. (Some curved segments use just one direction line.)
  2. Do any of the following:
    • To adjust the position of the segment, drag the segment. Shift-drag to constrain the adjustment to multiples of 45°.
    Clicking to select the curve segment, then dragging to adjust
    Click to select the curve segment. Then drag to adjust.

    • To adjust the shape of the segment on either side of a selected anchor point, drag the anchor point or the direction point. Shift-drag to constrain movement to multiples of 45°.
    Dragging the anchor point (left), or dragging the direction point (right)
    Drag the anchor point, or drag the direction point.

    Note:

    You can also apply a transformation, such as scaling or rotating, to a segment or anchor point.

Delete a segment

  1. Select the Direct Selection tool  , and select the segment you want to delete.
  2. Press Backspace (Windows) or Delete (Mac OS) to delete the selected segment. Pressing Backspace or Delete again erases the rest of the path.

Extend an open path

  1. Using the Pen tool, position the pointer over the endpoint of the open path you want to extend. The pointer changes when it’s precisely positioned over the endpoint.
  2. Click the endpoint.
  3. Do one of the following:
    • To create a corner point, position the Pen tool where you want to end the new segment, and click. If you are extending a path that ends at a smooth point, the new segment will be curved by the existing direction line.
    Note:

    In Illustrator, if you extend a path that ends in a smooth point, the new segment will be straight.

    • To create a smooth point, position the Pen tool where you want to end the new curved segment, and drag.

Connect two open paths

  1. Using the Pen tool, position the pointer over the endpoint of the open path that you want to connect to another path. The pointer changes when it’s precisely positioned over the endpoint.
  2. Click the endpoint.
  3. Do one of the following:
    • To connect the path to another open path, click an endpoint on the other path. When you precisely position the Pen tool over the other path’s endpoint, a small merge symbol  appears next to the pointer.
    • To connect a new path to an existing path, draw the new path near the existing path, and then move the Pen tool to the existing path’s (unselected) endpoint. Click that endpoint when you see the small merge symbol that appears next to the pointer.

Join two endpoints

  1. Select the endpoints.

    If the endpoints are coincident (on top of each other), drag a marquee through or around both endpoints to select them.

  2. Click the Connect Selected End Points button  in the Control panel.

    Joining endpoints in Illustrator
    Joining endpoints

    A. Selecting and joining coincident endpoints B. Selecting and joining noncoincident endpoints

    Note:

    In Illustrator, only corner joins are used to join open paths.

Join two or more paths

Illustrator provides the option to join two or more open paths. To join one or more open paths, use the Selection tool to select the open paths and click Object > Path > Join. You can also use the keyboard shortcut Ctrl+J (Windows) or Cmd+J (Mac).

When anchor points are not overlapping, Illustrator adds a line segment to bridge the paths to join. While joining more than two paths, Illustrator first looks for and joins the paths that have end points stationed closest to each other. This process is repeated until all paths are joined. If you select only one path to join, it is converted into a closed path.

Note:

In this process, you may lose complex aspects of your art styles.

The output path has the appearance of the topmost path in the selection.

The join option only results in a corner join regardless of whether you select anchor points to join or the entire path. However, for overlapping anchor points, if you want the option to select a smooth or corner join, then use Ctrl+Shift+Alt+J (Windows) or Cmd+Shift+Option+J (Mac OS).

Move or nudge anchor points or segments using the keyboard

  1. Select the anchor point or path segment.
    Note:

    In Photoshop, you can move only anchor points in this manner.

  2. Click or hold down any of the arrow keys on the keyboard to move 1 pixel at a time in the direction of the arrow.

Hold down the Shift key in addition to the arrow key to move 10 pixels at a time.

Note:

In Illustrator and InDesign, you can change the distance of a nudge by changing the Keyboard Increment preference. When you change the default increment, holding down Shift nudges 10 times the specified distance.

Stretch parts of a path without distorting its overall shape

  1. Select the entire path.

  2. Select the Reshape tool  (located under the Scale tool ).

  3. Position the cursor over the anchor point or path segment that you want to act as a focal point (that is, a point that pulls selected path segments), and click.

    If you click a path segment, a highlighted anchor point with a square around it is added to the path.

  4. Shift-click more anchor points or path segments to act as focal points. You can highlight an unlimited number of anchor points or path segments.

  5. Drag the highlighted anchor points to adjust the path.

 Adobe

Get help faster and easier

New user?

Quick links

View all your plans Manage your plans
View quick links
Hide quick links

Legal Notices    |    Online Privacy Policy
